Add a Data Series to the Graph

Any series you add to the graph will persist throughout your current vScape session. Once you have added a series to the graph, you can use the Advanced Graph Content Controls for functionality such as changing the series' graphical style or units.

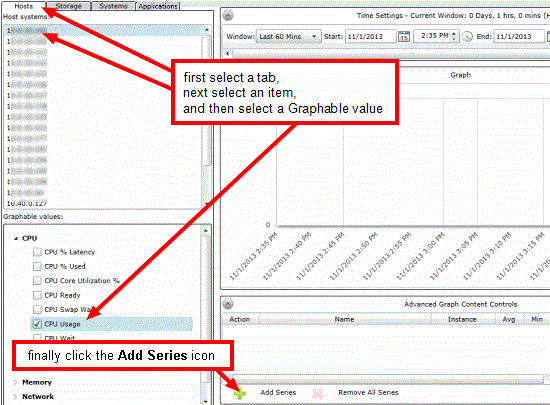

1. Select a tab and then select an item.
• From the Hosts tab select a Host system.
• From the Storage tab select a Storage unit.
• From the Systems tab select a System.
• From the Applications tab select All Systems or a specific group of systems.

  NOTE: Before adding an Applications data series to the graph, you must first click Remove All Series to clear all previously added data series from the graph.

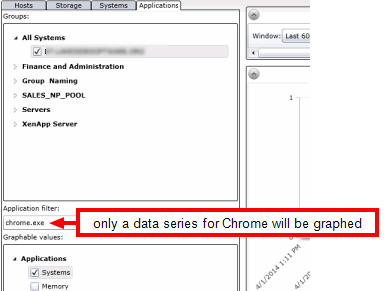

2. For the Applications tab only: Before you add the series, you can enter an application name to filter the applications that are graphed to only that application. Wild cards (*) are allowed and the filter is not case sensitive. Only the top 10 (or less) applications matching the entered filter text will be returned.



3. Select a Graphable value.

   TIP: If you are selecting from the Applications tab, you can only select one Graphable value. If you are selecting from any other tab you can select multiple Graphable values.

4. Click the icon.

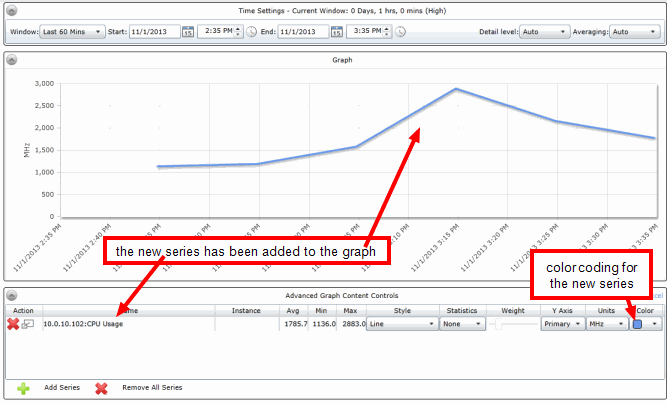

5. The series is added to the graph.
